Name: PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG2B310CLL
Brand: Ebuddy
Price: 1 USD

Brand Name : Ebuddy

Model Number : EGG.2B.310

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Insulator : PPS

Series : FGG/EGG

Size : Lemo 2B

Shock resistance : 100g.6ms

Max. Matings: 5000 : 5000

IP Rating : IP50

Resiatance to vibration : 10-20000Hz, 15g

Warranty time : 1 year

Contact Now

Lemo alternative EGG 10pin female receptacle 10pin 2B PCB socket EGG.2B.310.CLL

Description:

Shell Style/Model	EG*: Fixed receptacle, nut fixing
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

PERFORMANCE DETAILS
Insert	2B.310 : 10Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Female solder
Max. Matings	5000
Contact Dia	0.9 mm (0.035in)
Bucket Dia	0.8 mm (0.031in)
Max. Solid Conductor	0.34 mm^2 (AWG 22)
Max. Stranded Conductor	0.34 mm^2 (AWG 22)
R (max)	4.8mOhm
Vtest (AC)	1600 V
Rated Current	8A

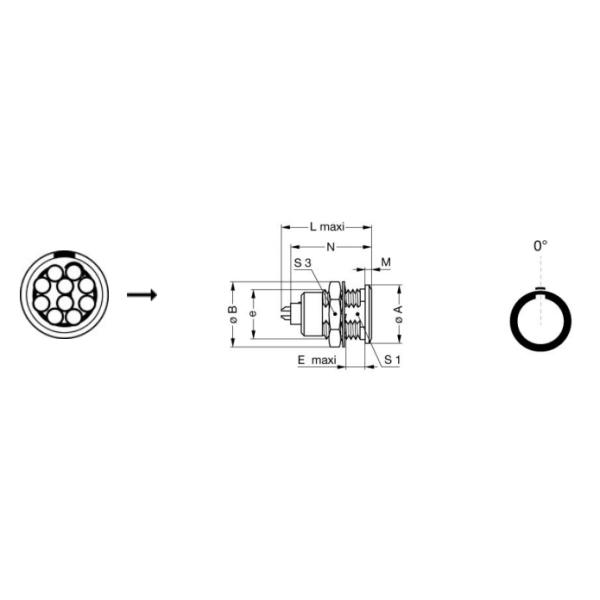

Size Drawing:

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL

Warranty Policy: 1year warranty time:

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.

Why choose Ebuddy:

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL
